Nominal Power: 80W
Maximum Power Voltage: 19.05V
Nominal Power: 80W
Maximum Power Voltage: 19.05V

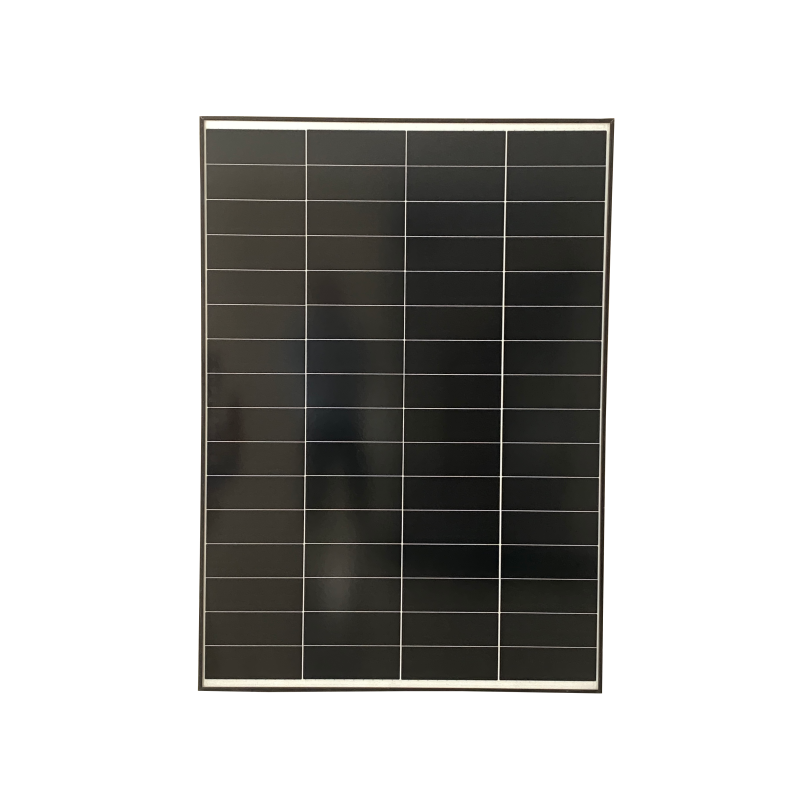

| Model number | SZBC-80 |
| Nominal Power | 80W |
| Cell Efficiency | ＞25% |
| Maximum Power Current | 4.20A |
| Maximum Power Voltage | 19.05V |
| Open-circuit Voltage | 21.75V |
| Short-circuit Current | 4.46A |
| Maximum System Voltage | 500V |
| Output Tolerance | 0~+3% |
| Cable （MC4） | 700mm / 2.5mm² |
| Module Structure | Aluminum Frame / Glass / EVA /Backsheet |
| Junction box rating | ≥IP67 |
| Cell | 182*61.25–10*3 |
| Working Temperature | -40~+85℃ |
| Module Dimensions | 675*580*30mm |
| Weight（Net /Gross） | 4.1/4.9kg |
