AST-100 12V 100Ah LiFePO4 Battery

The AST-100 is a 12.8V 100Ah LiFePO4 battery (1,280Wh) built for boats, campervans and off-grid cabins where weight matters.

At 10.9 kg it replaces a far heavier lead-acid block of the same nominal capacity and gives you the full 100Ah instead of the 50 percent usable reserve of lead-acid. Every cell carries its own QR code for traceability. The pack is clamped with an aluminium alloy plate and stainless steel bands, and an active-balancing BMS moves energy between cells so capacity stays evenly distributed. Scan the battery QR code to pair the app over Bluetooth and read state of charge, voltage and temperature in real time. Low-temperature heating keeps charging safe in winter.

Dimensions 303 x 175 x 169 mm.

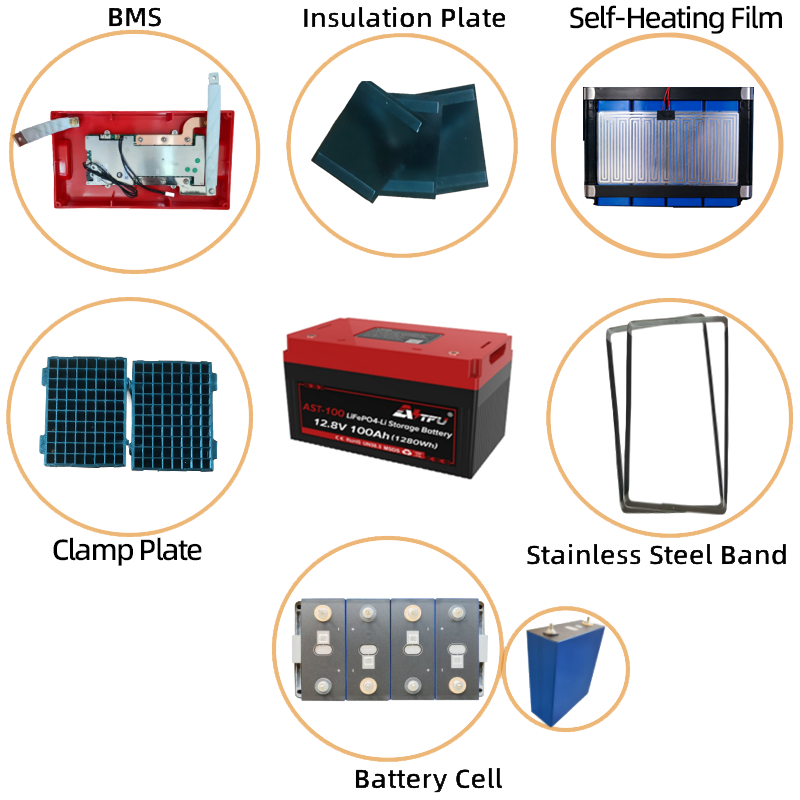

Cell introduction:

Each cell has an individual QR code, when scanned, which allows you to find information about the battery cell on the website.

Assembly Method:

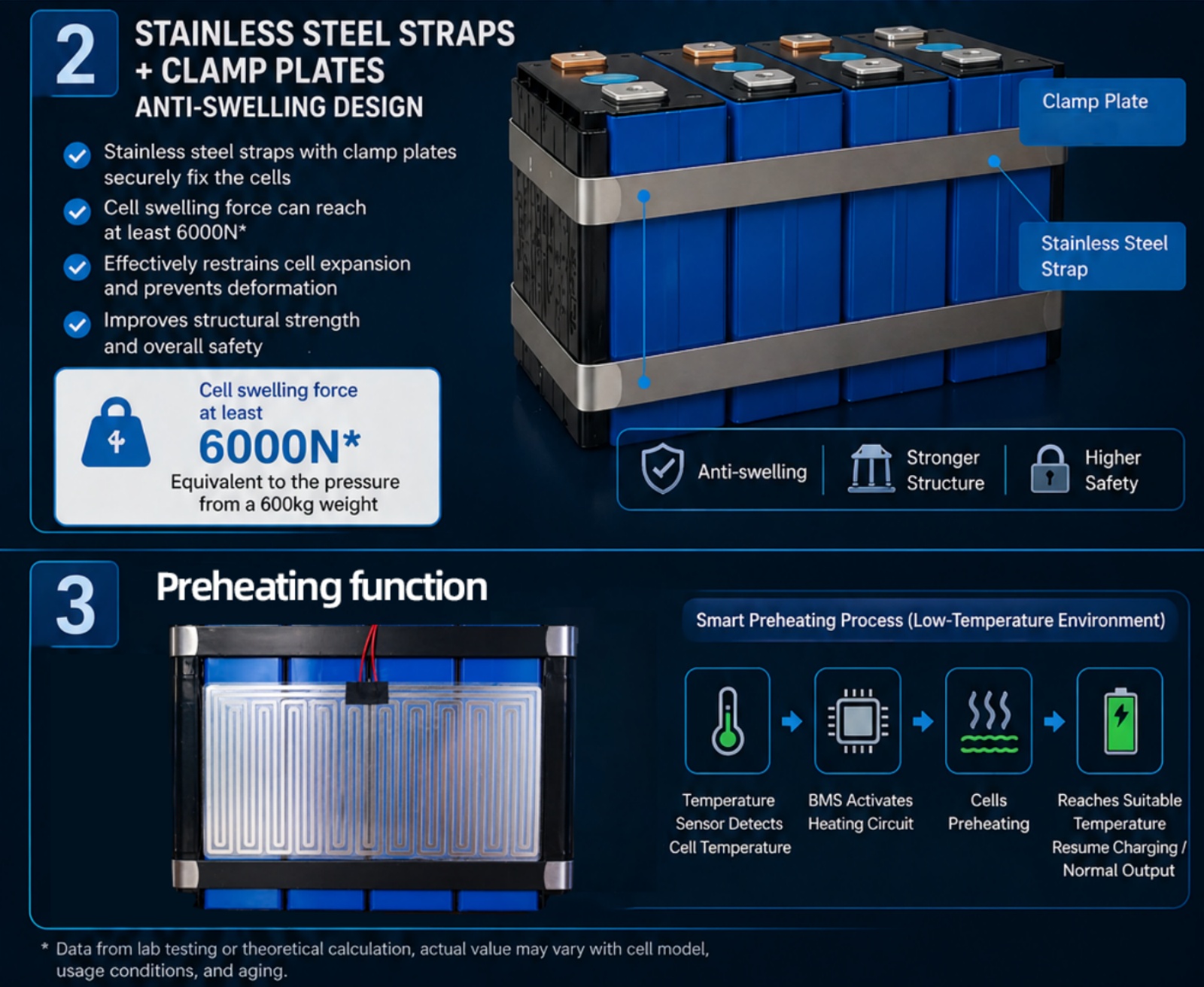

The assembly method involves positioning the cells with an aluminum alloy clamp plate, then securing the entire battery cell group with stainless steel bands.

BMS protection board：

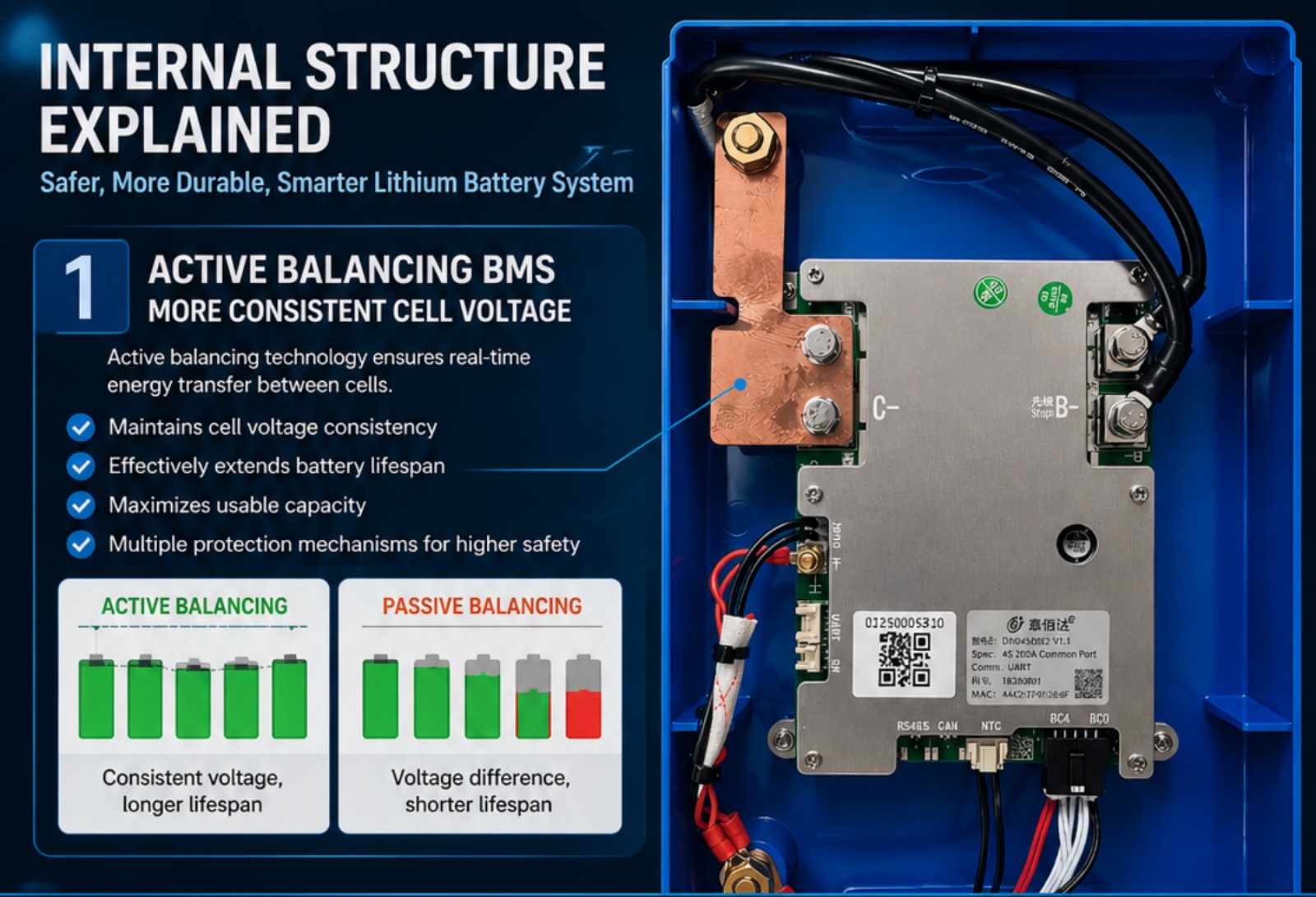

This battery uses a protection board with active balancing.

Active balancing works by transferring energy from cells with higher capacity to those with lower capacity, thus balancing the energy distribution within the battery pack, and keep the battery at maximum capacity.

The Complete Battery:

Each battery has a QR code enabling Bluetooth and WiFi connection. By scanning with your mobile phone, users can download an app to monitor the battery's status in real-time.

Heating function:

Solve performance issues in low temperature environments and ensure that batteries can still work safely and efficiently in cold conditions.

The red-cap AST battery can be connected in series, up to four units.

24V, 36V or 48V system voltage can be achieved through series connection.

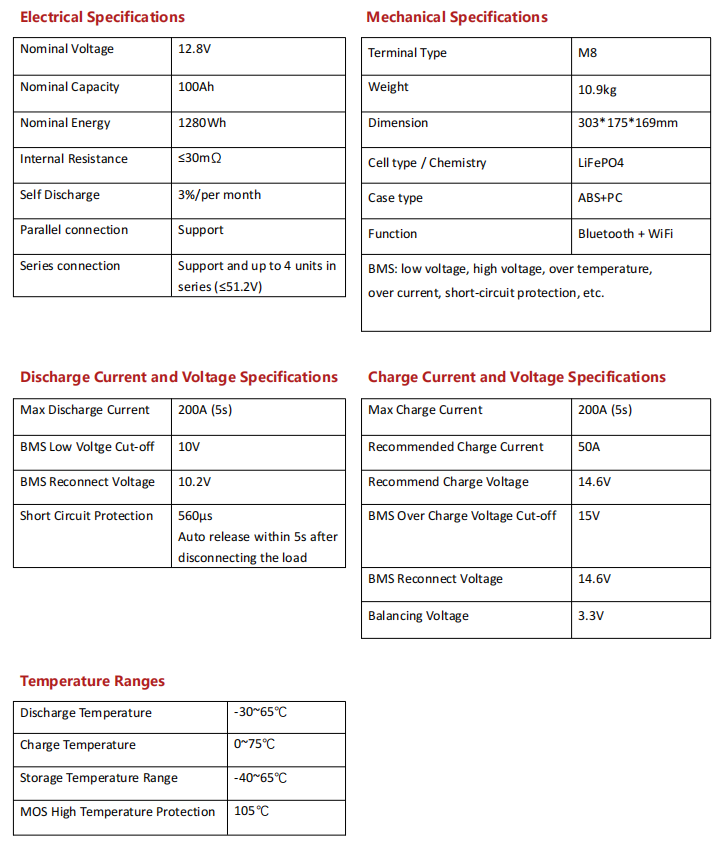

 AST-100 12.8V 100Ah LifePO4 battery specifications.PDF
