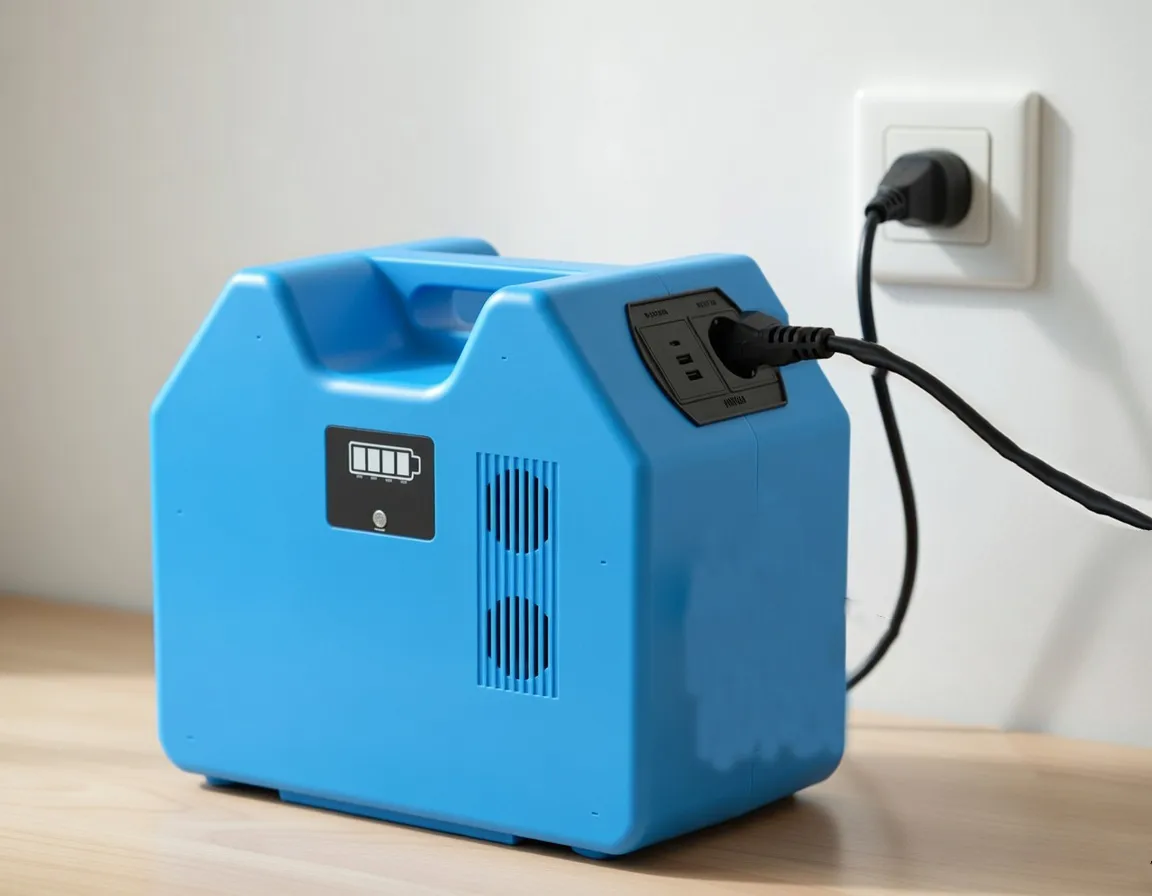

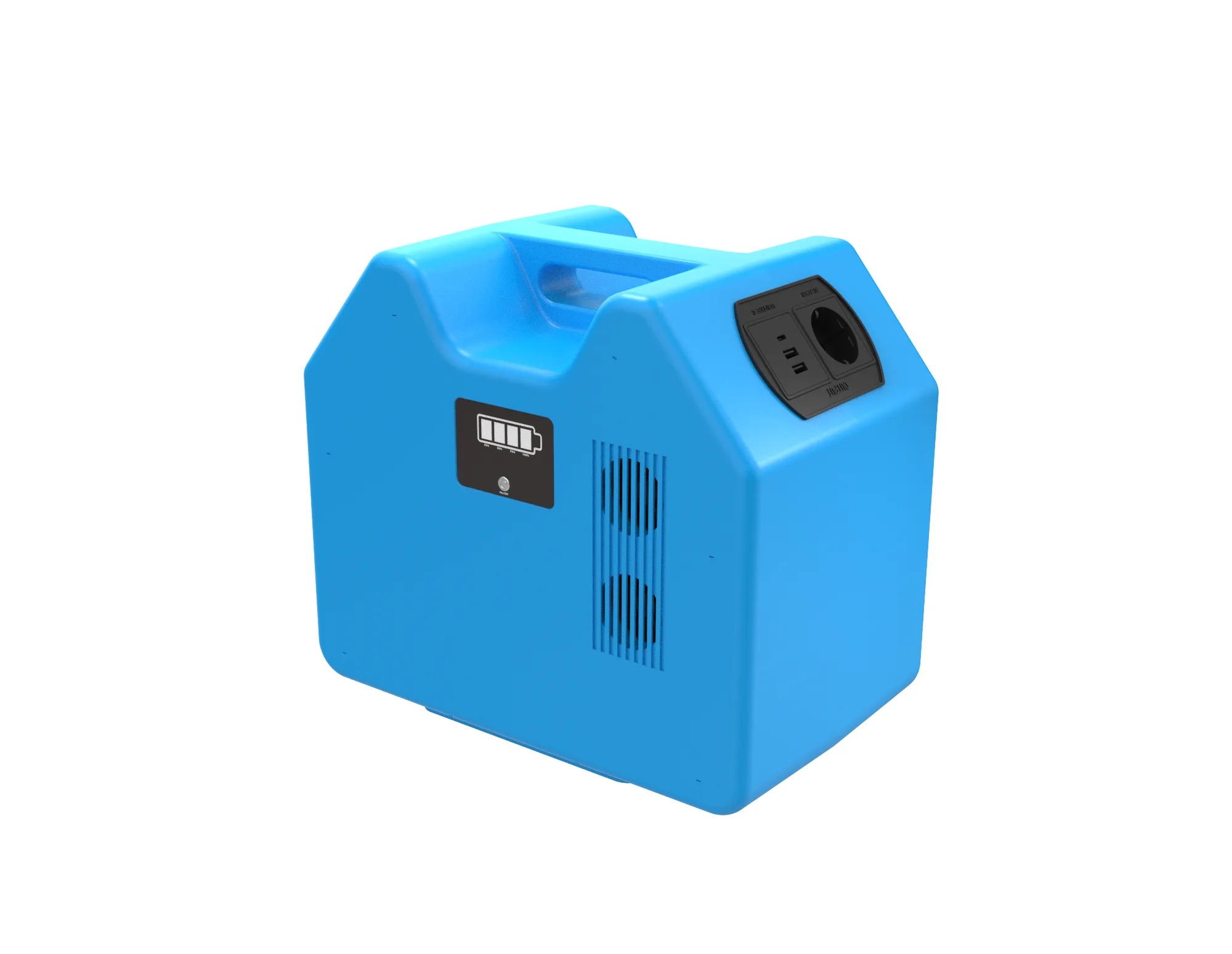

2208Wh LFP battery provides extended, reliable power for multi-day adventures and essential home backup.

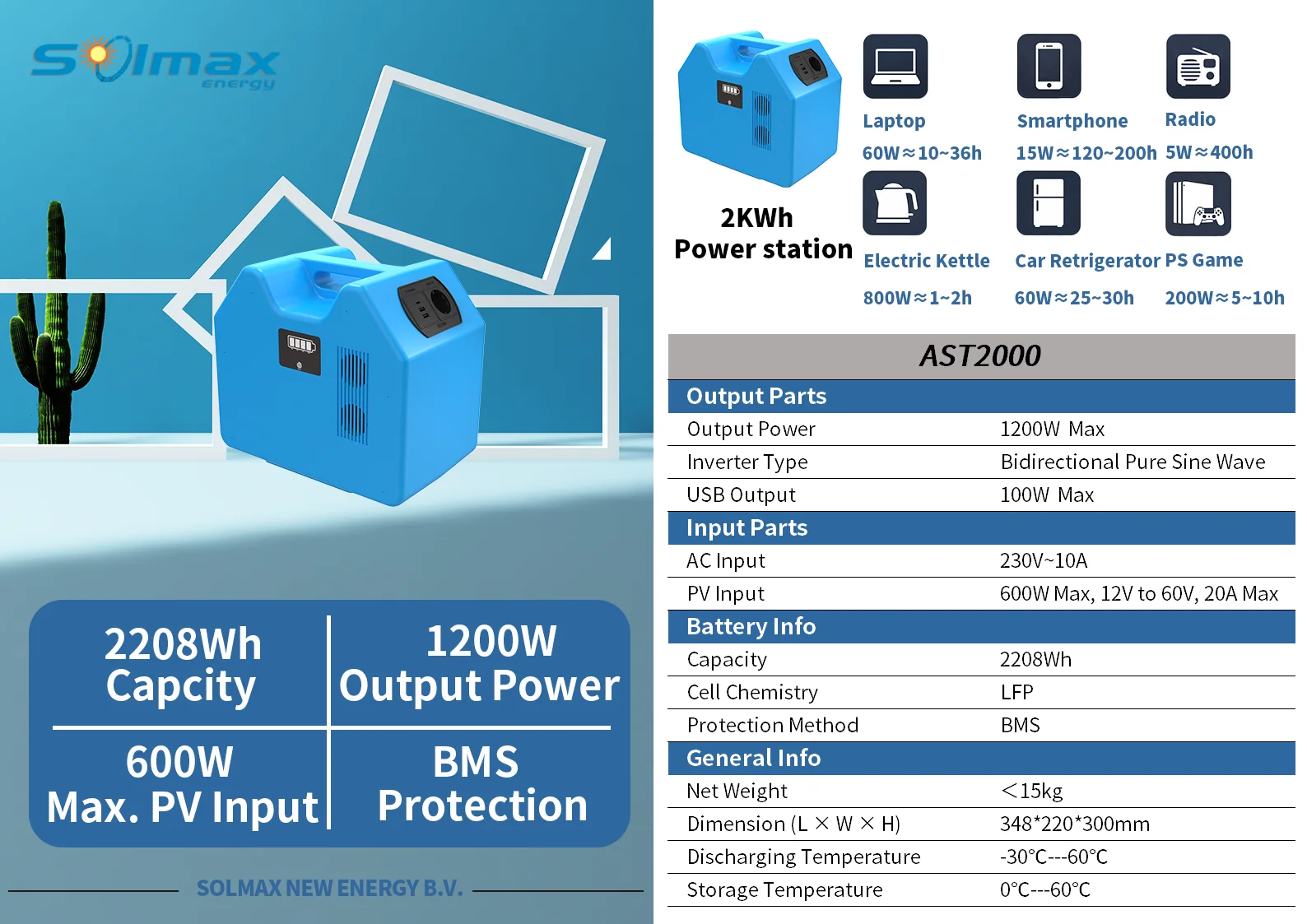

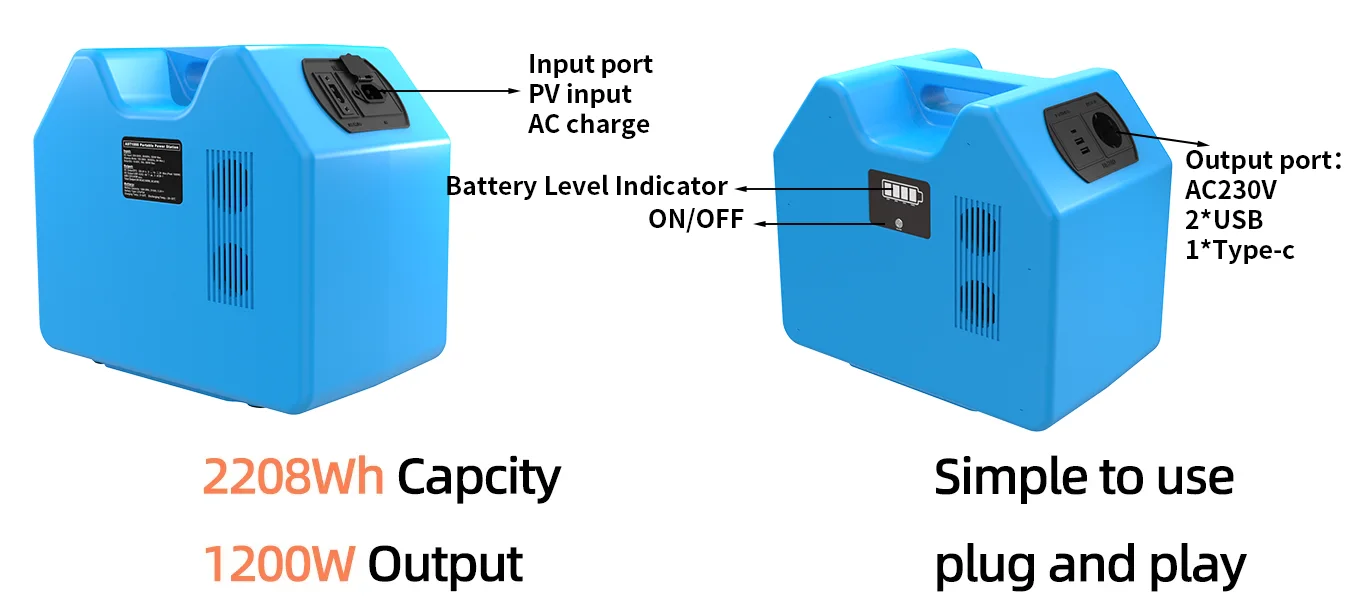

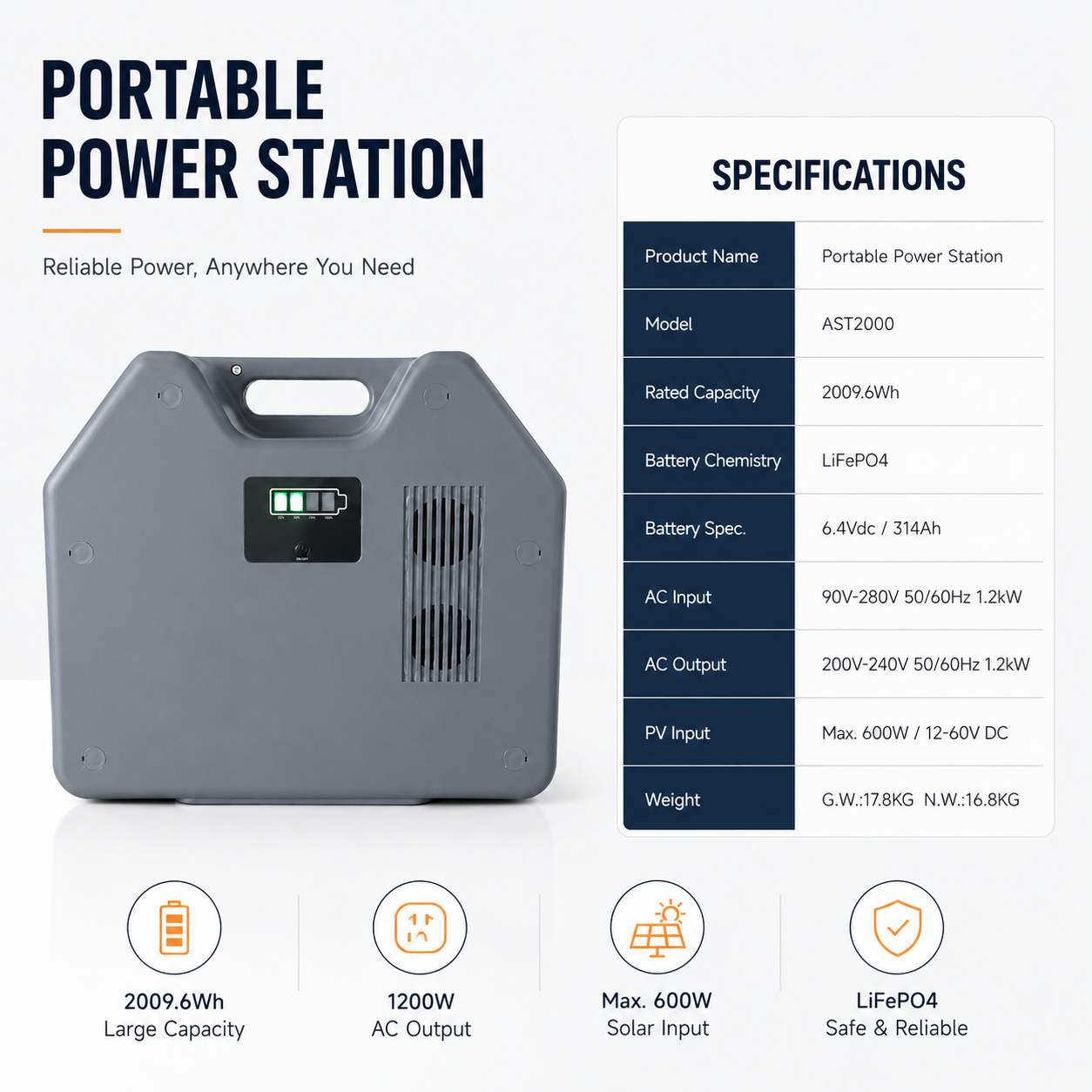

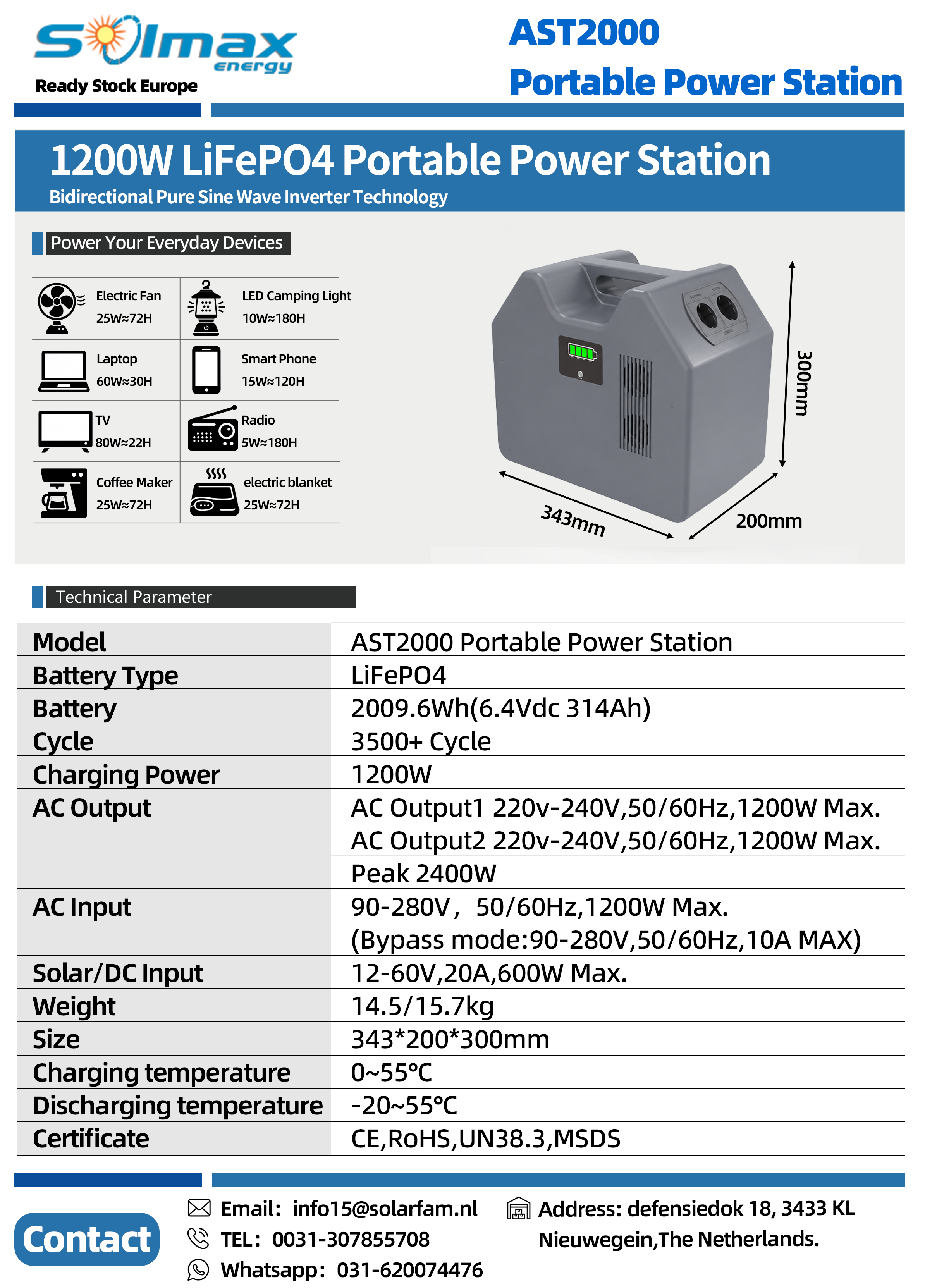

| AST2000 | Semi-flexible solar panel SZ-180-MC | ||
| Output section | Nominal Power | 180W | |
| Nominal Power | Maximum 1200W | Maximum Power Current | 8.17A |

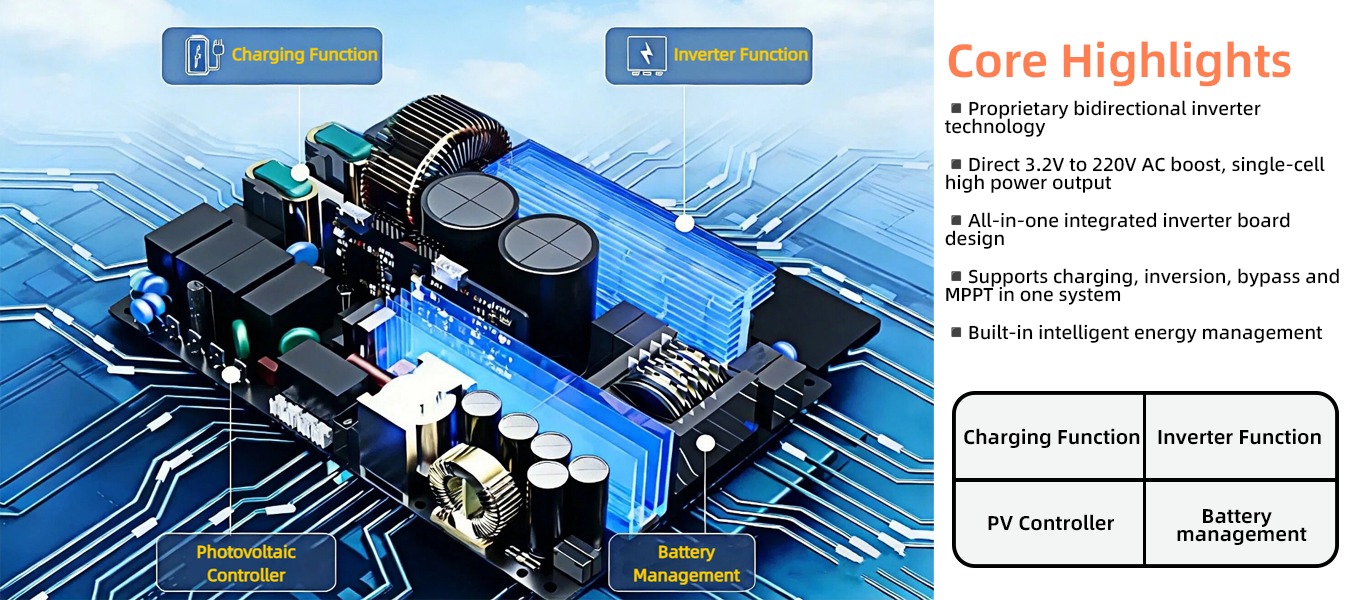

| Inverter type | Bidirectional sine wave | Maximum Power Voltage | 22.04V |

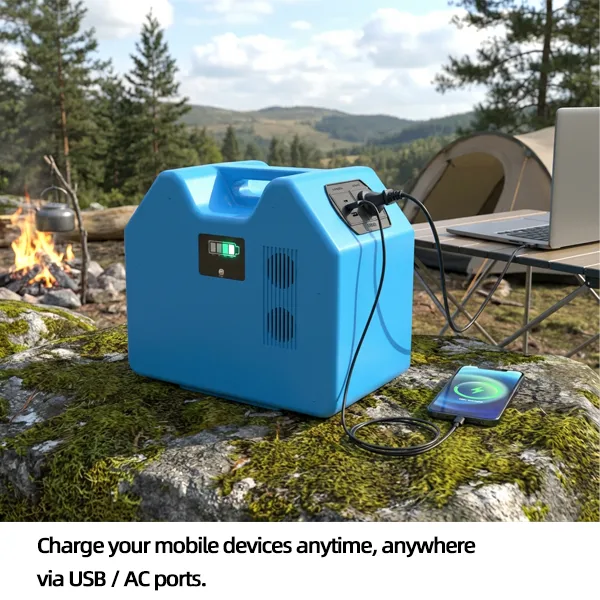

| USB output | USB 100W | Open-circuit Voltage | 25.84V |
| Input section | Short-circuit Curren | 8.66A | |
| Communication input | 230V～10A | Maximum System Voltage | 200V |
| Photovoltaic input | Maximum 600W, 12V to 60V, maximum 20A | Output Tolerance | 0~3% |
| Battery Information | Cable （MC4） | 900mm / 2.5mm² | |
| Capacity | 2208Wh | Module components | CPC / EVA / Backsheet |

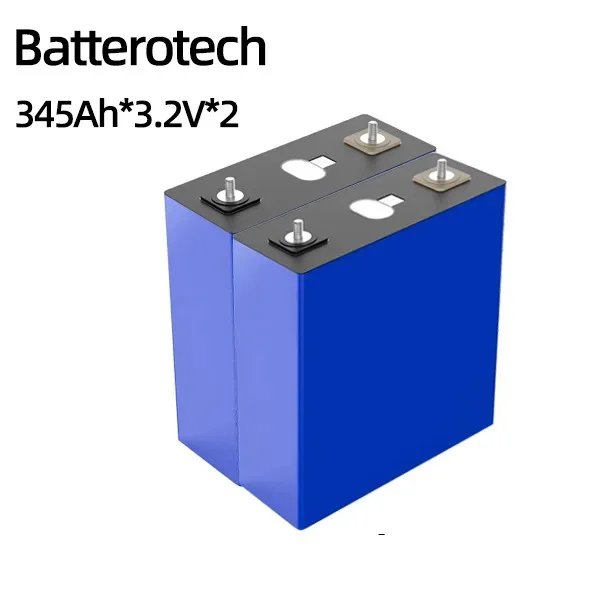

| Battery cell materials | LFP | Junction box rating | ≥IP67 |
| Protection methods | BMS | Cell | 182*60.6–19*4 |
| Net weight | ＜15kg | Working Temperature | -20℃~+65℃ |
| Dimensions (length × width × height) | 348*220*300mm | Module Dimensions | 1260*780*2mm |
| Discharge temperature | -30℃---60℃ | Weight（Net /Gross） | 3.9/5.2kg |
| Storage temperature | 0℃---60℃ | Package | Single-piece packaging |
