Operates reliably from -30°C to 60°C, built to perform in extreme outdoor and storage conditions.

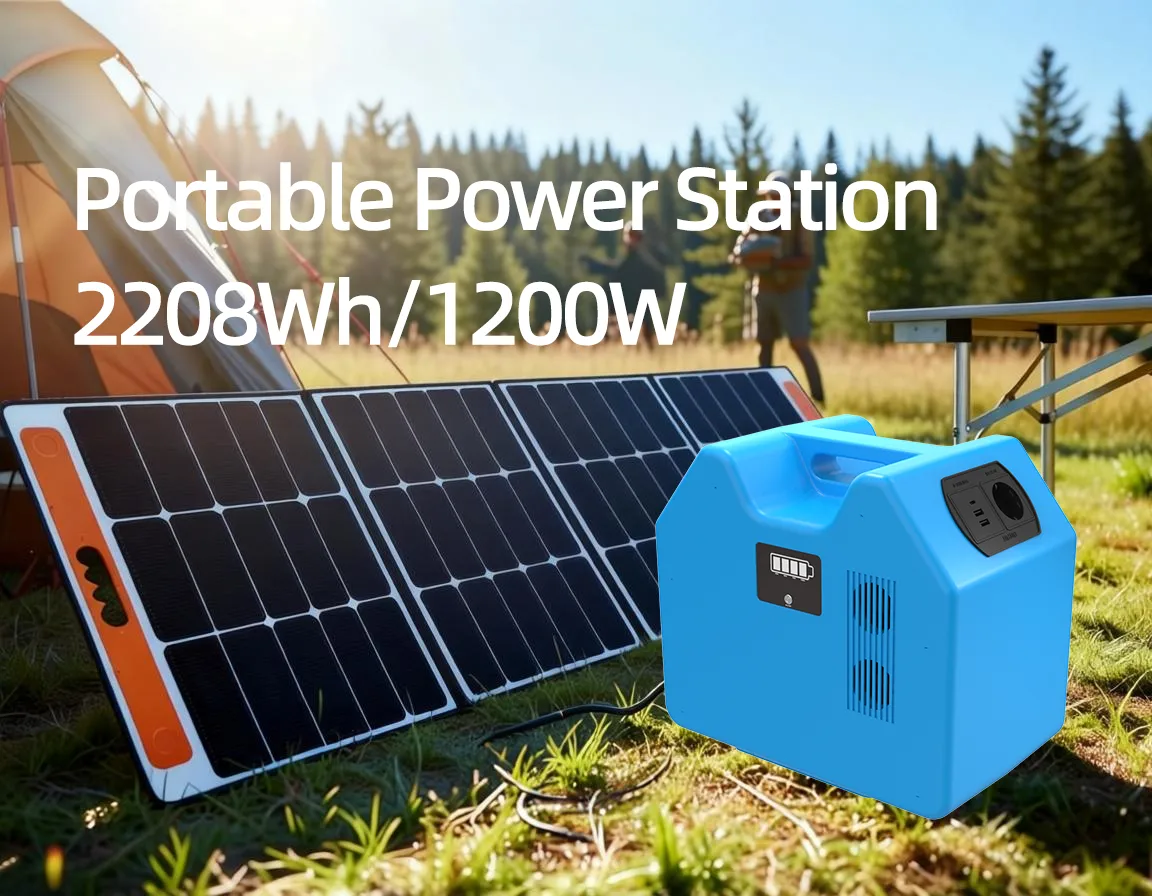

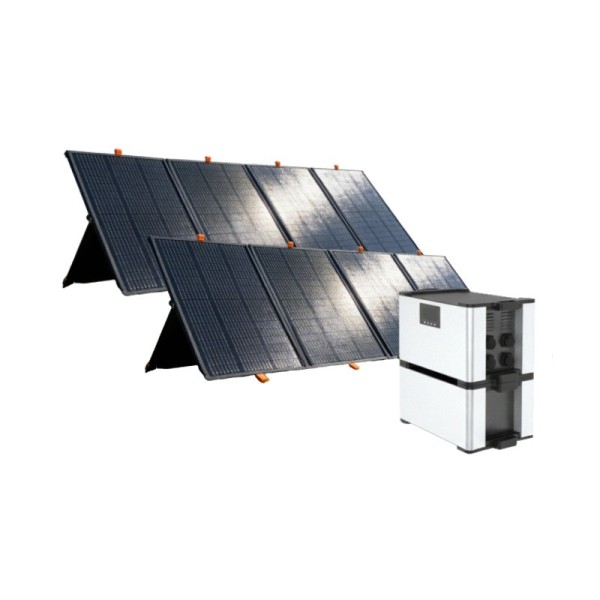

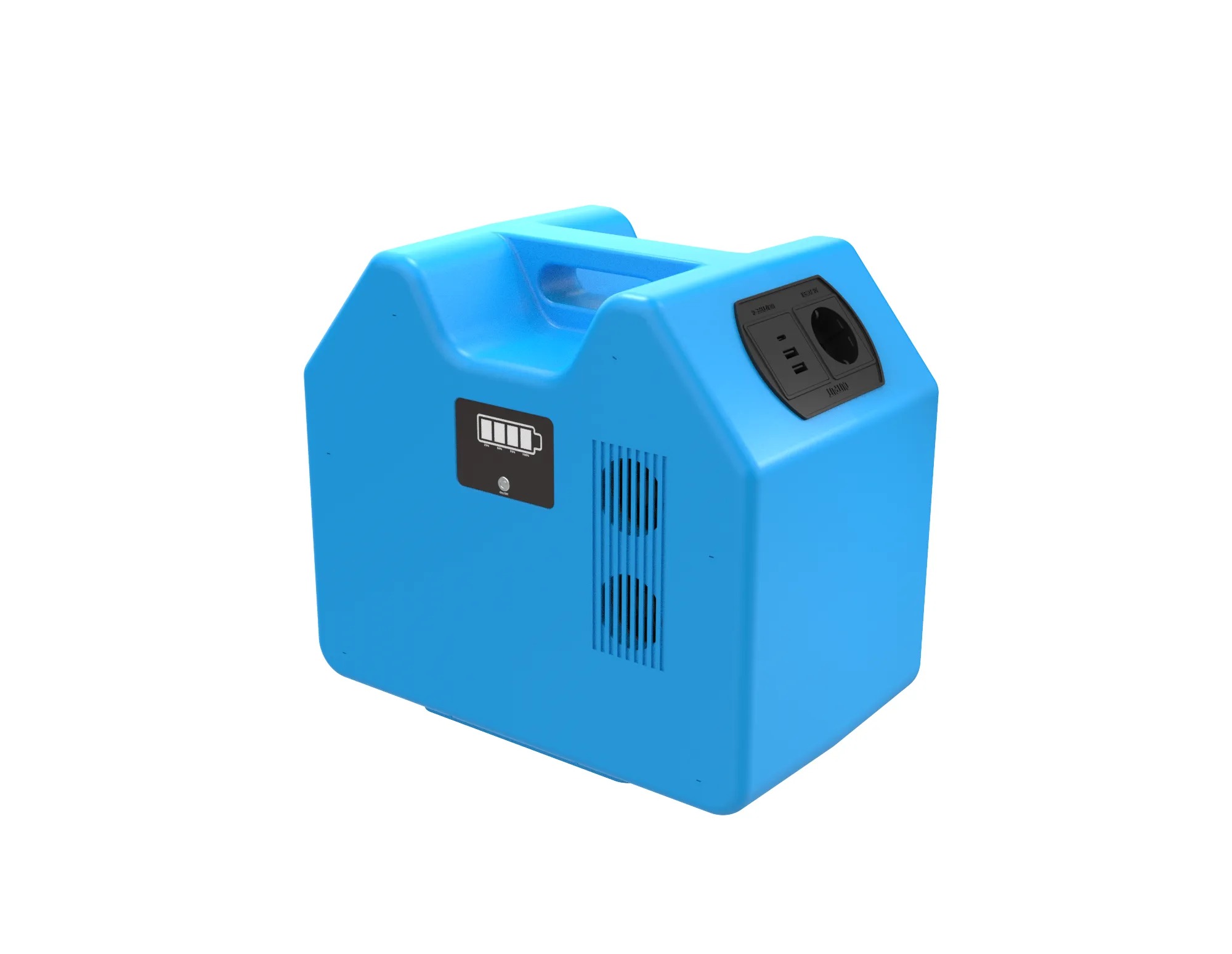

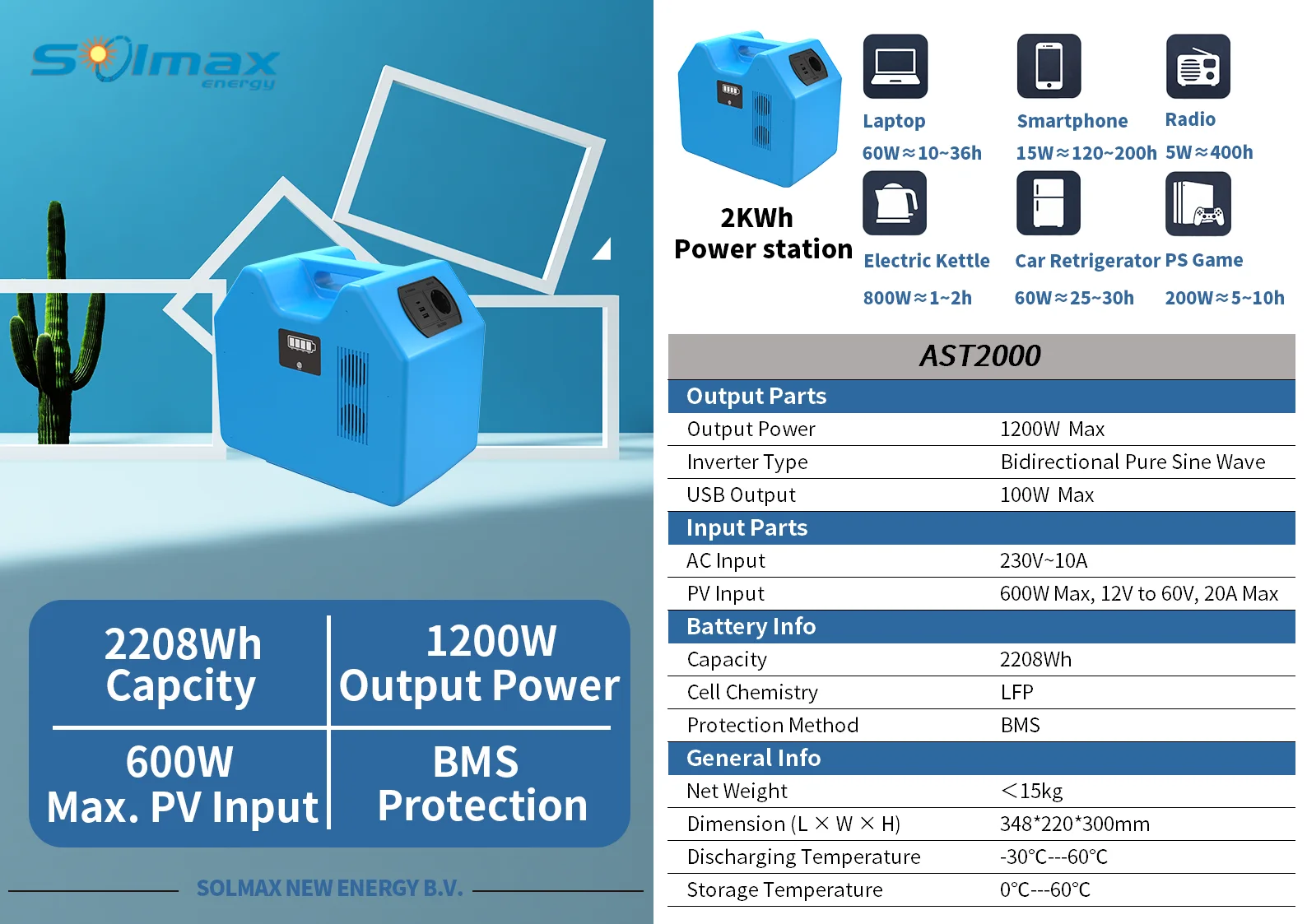

| AST2000 | Foldable solar panel SZ-300-FC-B | ||
| Output section | Nominal Power | 300W | |
| Nominal Power | Maximum 1200W | Maximum Power Voltage | 17.40V |

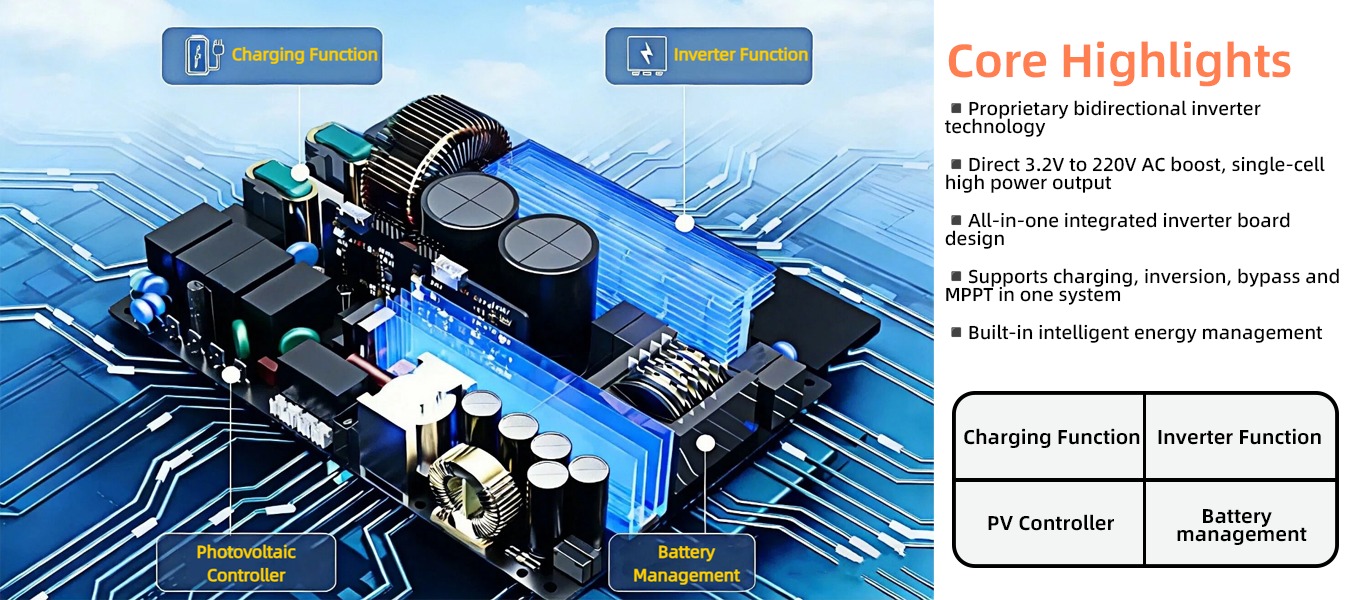

| Inverter type | Bidirectional sine wave | Maximum Power Current | 17.25A |

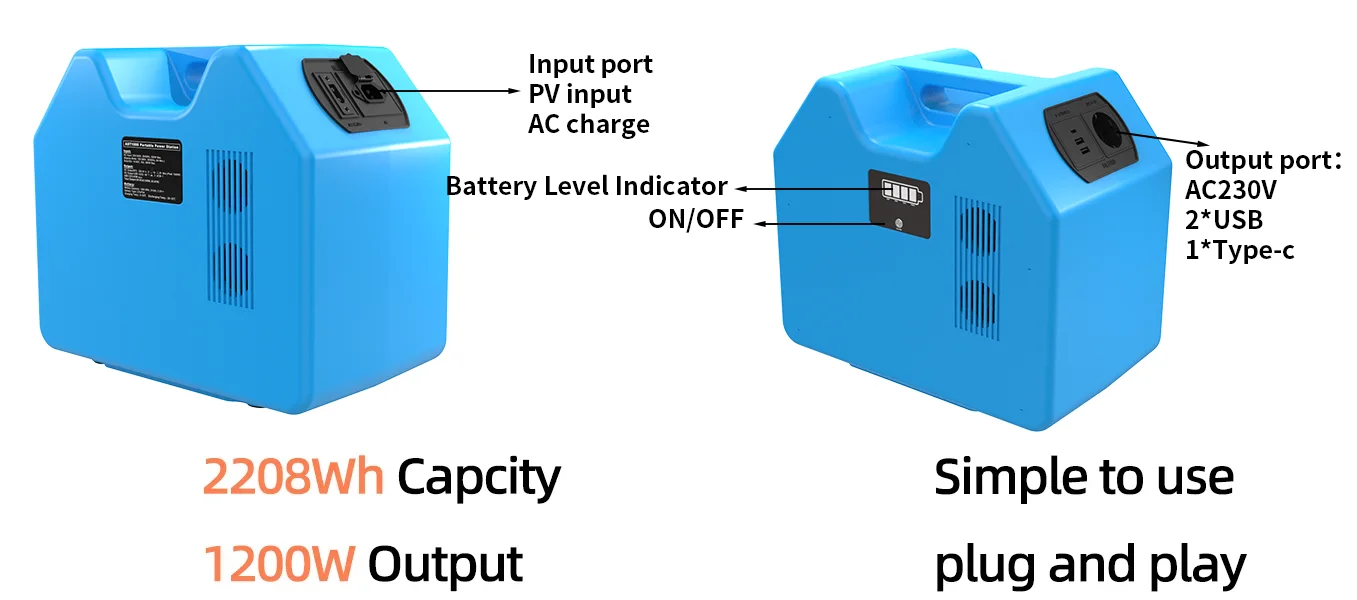

| USB output | USB 100W | Open-circuit Voltage | 20.40V |
| Input section | Short-circuit Current | 18.28A | |
| Communication input | 230V～10A | Output Tolerance | 0~3% |
| Photovoltaic input | Maximum 600W, 12V to 60V, maximum 20A | DC Output | XT60 / 30A (Max.) |
| Battery Information | USB-C PD3.0 | 5-20V / 3A; 20V5A (Max.) | |
| Capacity | 2208Wh | USB Port-A | 5V2A |

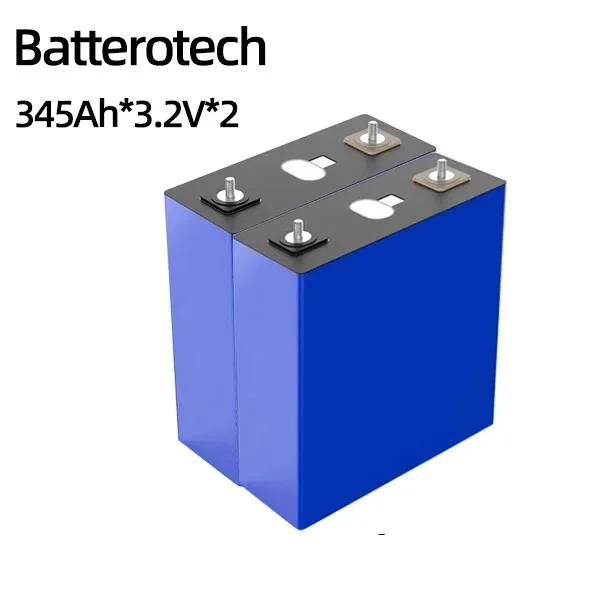

| Battery cell materials | LFP | USB Port-QC3.0 | 5-20V/3A |
| Protection methods | BMS | Module Dimensions (Folded) | 580*580*70mm |
| Net weight | ＜15kg | Module Dimensions (Unfolded) | 3200*580*30mm |
| Dimensions (length × width × height) | 348*220*300mm | Weight（Net /Gross） | 9.3/10.0kg |
| Discharge temperature | -30℃---60℃ | Accessories | |

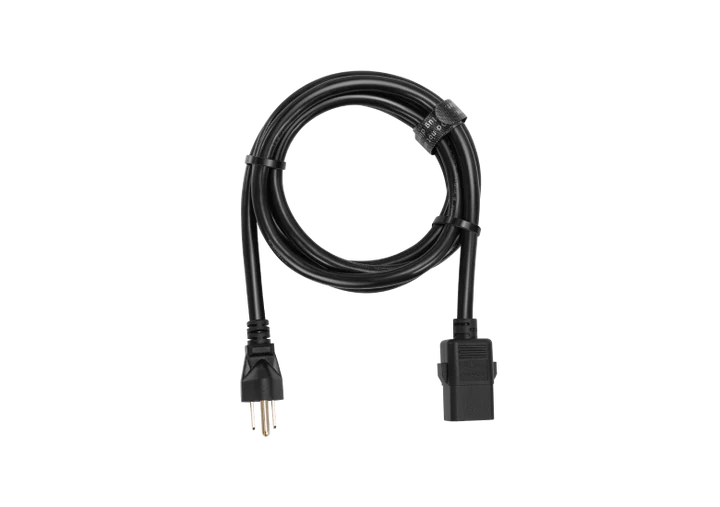

| Storage temperature | 0℃---60℃ | Cable | 1*XT60 to MC4—2.5mm²-1.5m |
