SF-100 12.8V 100AH Lithium Battery

Cell introduction:

Each cell has an individual QR code, when scanned, which allows you to find information about the battery cell on the website.

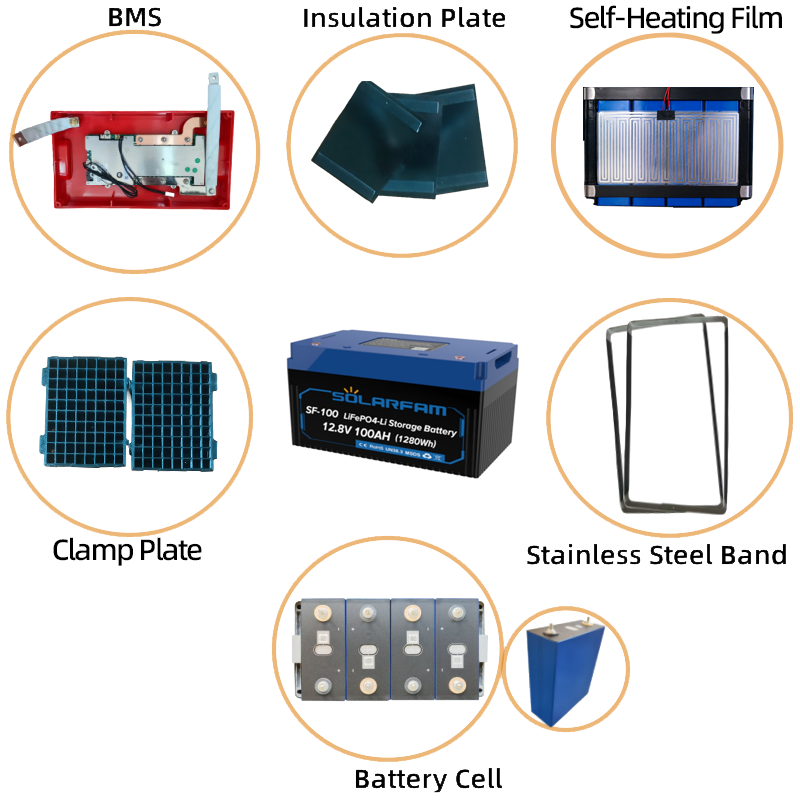

Assembly Method:

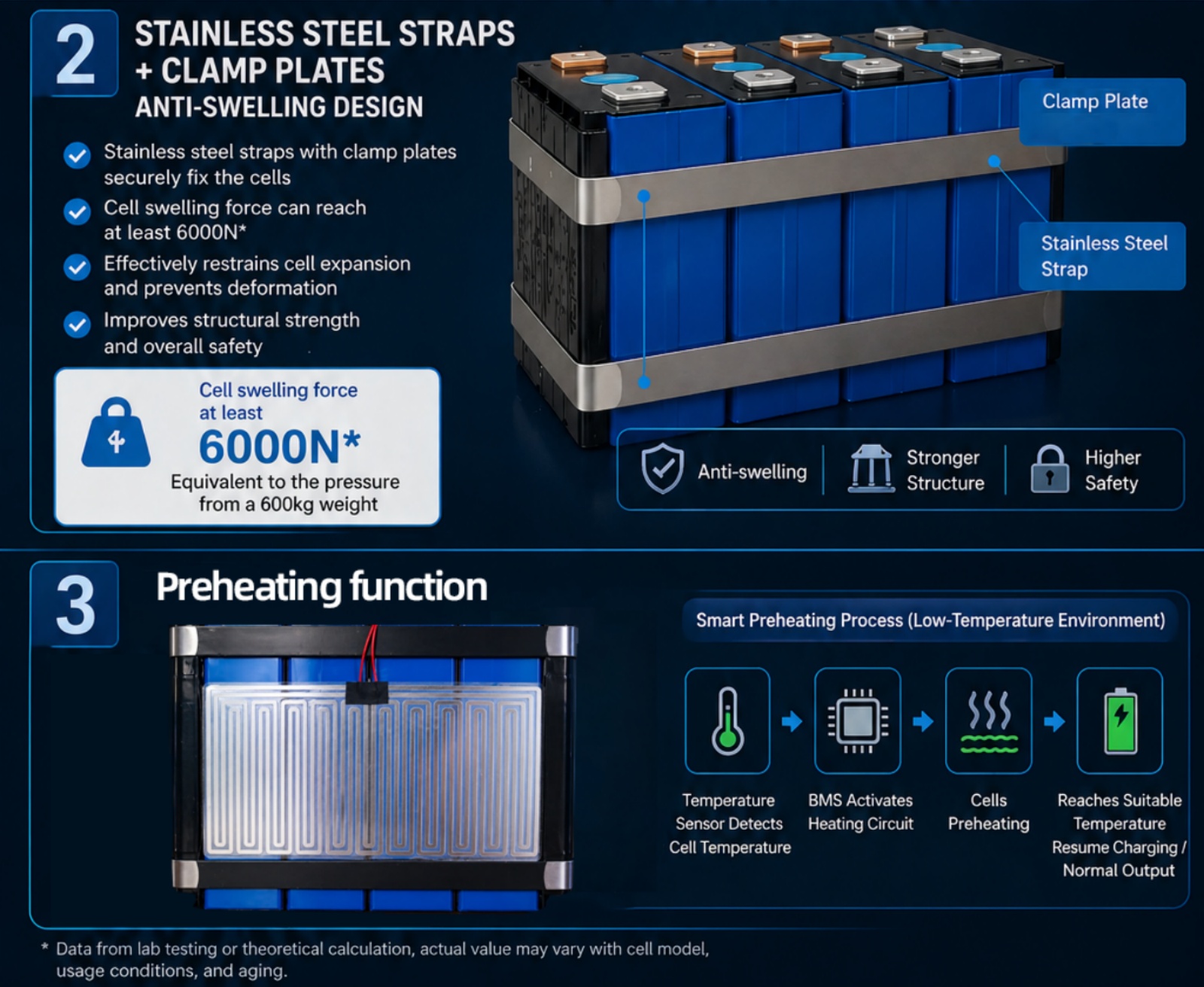

The assembly method involves positioning the cells with an aluminum alloy clamp plate, then securing the entire battery cell group with stainless steel bands.

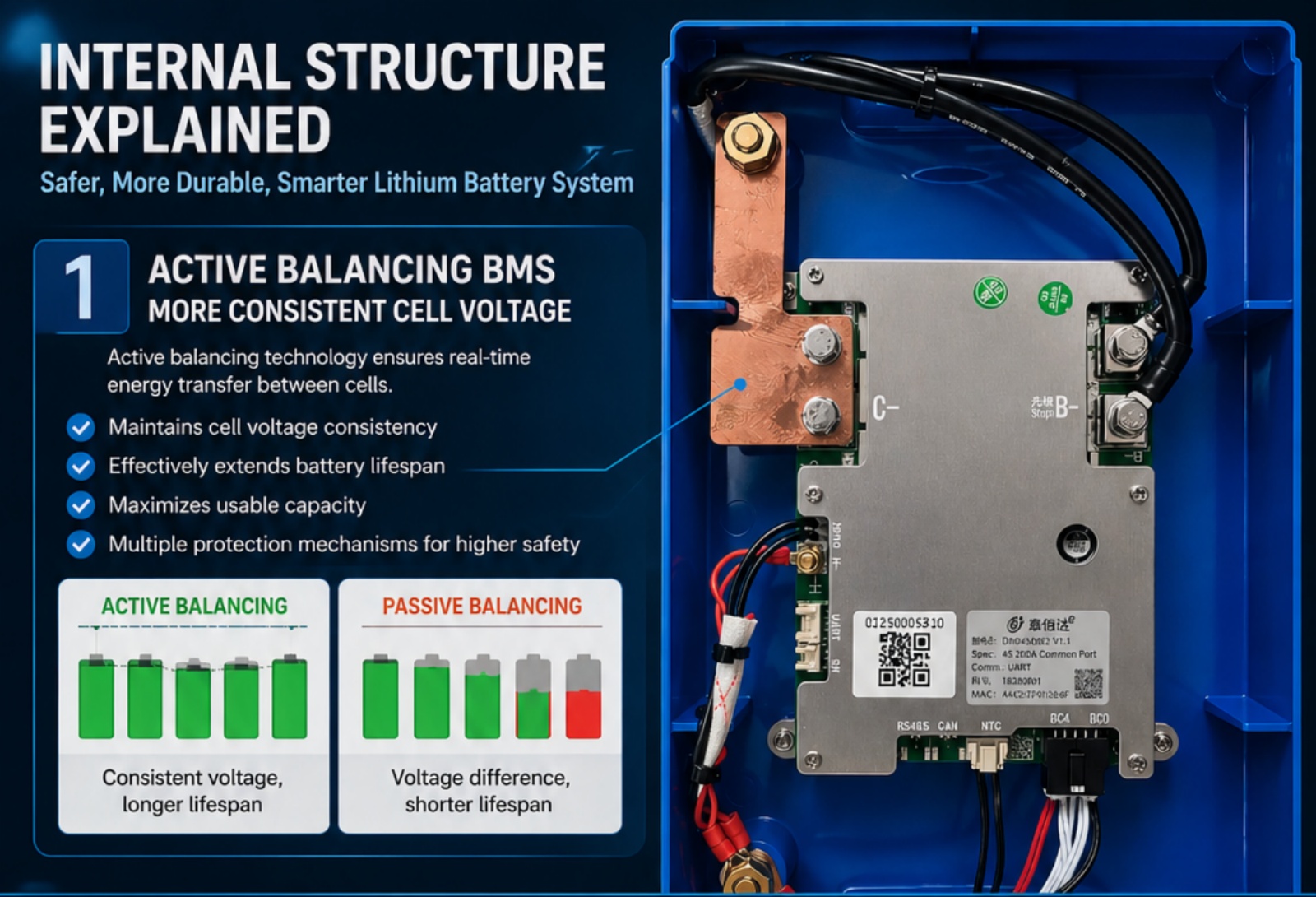

BMS protection board：

This battery uses a protection board with active balancing.

Active balancing works by transferring energy from cells with higher capacity to those with lower capacity, thus balancing the energy distribution within the battery pack, and keep the battery at maximum capacity.

The Complete Battery:

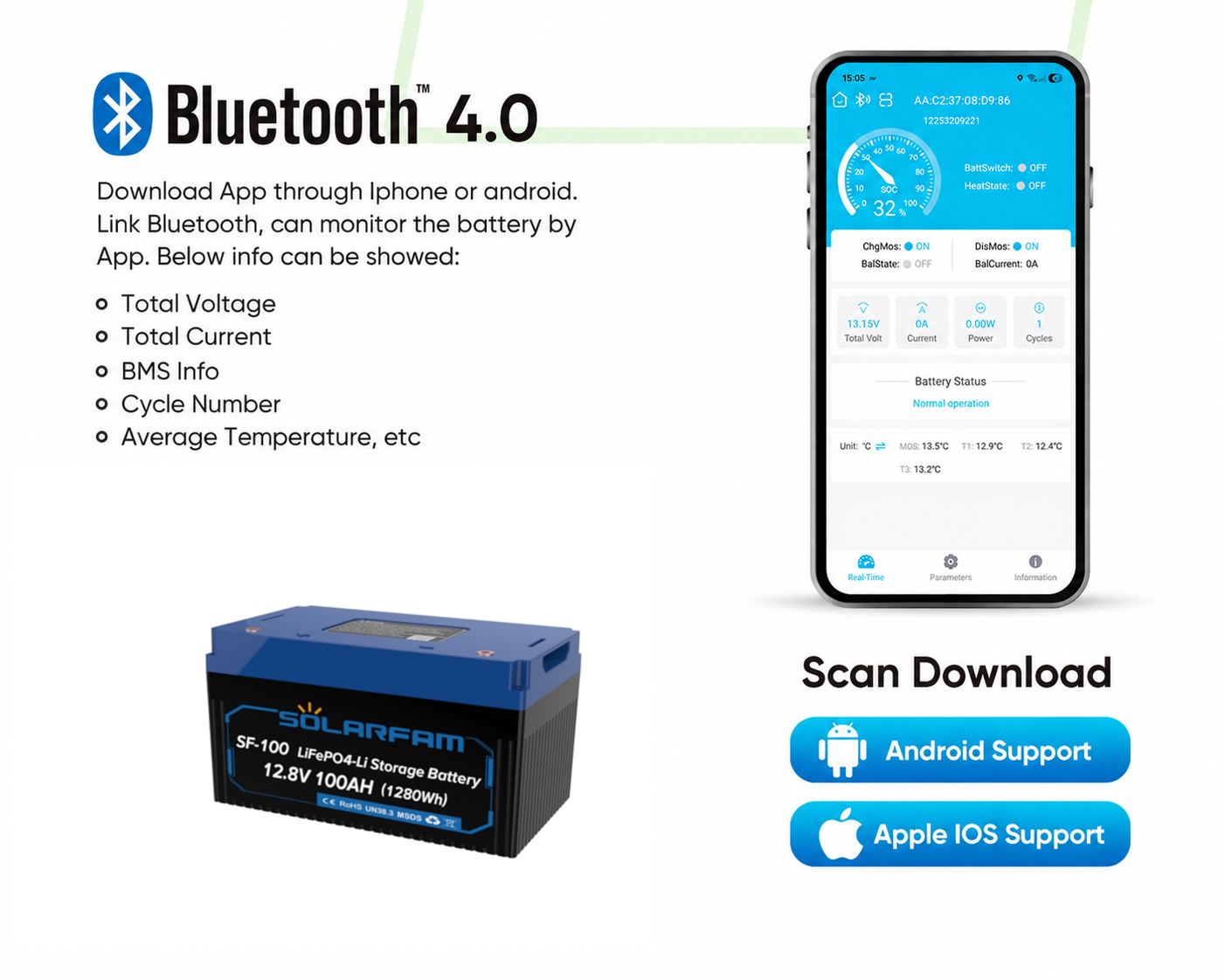

Each battery has a QR code enabling Bluetooth and WiFi connection. By scanning with your mobile phone, users can download an app to monitor the battery's status in real-time.

Heating function:

Solve performance issues in low temperature environments and ensure that batteries can still work safely and efficiently in cold conditions.

The blue-cap Solarfam battery cannot be connected in series.
