MPS 5500HP Hybrid Inverter Parallel conntction available

Features：

Pure sine wave output

Output power factor 1.0

Programmable supply priority for PV,battery or Grid

User-adjustable charge current and voltage

Wide PV input range(120Vdc-500Vdc),110A MPPT SCC

Working without batteries in sunny day

WiFi Monitoring Function(optional)

Anti-dusk kit for harsh environment(optional)

LCD remote control with 10 meters wire(optional)

PV and electricity complementary

Use with lithium batteries

Application of our product:

Living house and homebuilding.

Office building, factory, and warehouse.

Shopping mall, stadium and so on.

Power station, field operation, and some huge engineer construction.

Suitable for various home appliances, Office equipmen.

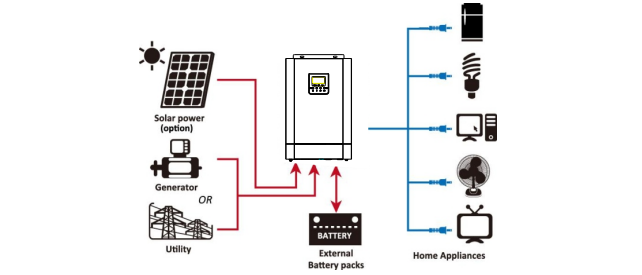

Hybrid Power System Figure

Introduction
This inverter can be used in parallel with two different operation modes.
1. Parallel operation in single phase with up to 6 units.The supported maximum output power is 30KW/30KVA.
2. Maximum six units work together to support three-phase equipment.Four units support one phase maximum.The supported maximum output power is 30KW/30KVA and one phase can be up to 20KW/20KVA.

NOTE: If this unit is bundled with share current cable and parallel cable,this inverter is default supported parallel operation.
